Home / SR40 V3 Hydro Cooling Container

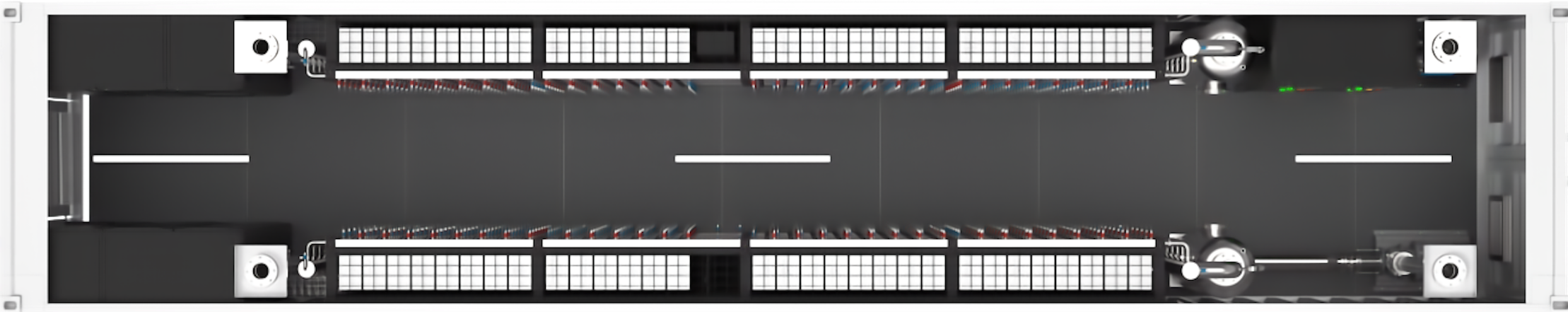

SR40 V3 Hydro Cooling Container

Purpose-built for large-scale hydro-cooling data center cluster with exceptional thermal and spatial efficiency

Modular Structure

High-Density Computing Power Support

Rapid Deployment

Stable Heat Dissipation

Industrial-Grade Design

PDC

Main breaker: 2400A(1200A*2)

Miner breaker: 16A*210pcs

NET Switch

24port 1000Mps*15pcs

Computer Rack

210 Slot High-strength frame built-in cable

CDU

PLC cabinet All in One water tank Pump: 103m3/h

Product Overview

The SR40 V3 Hydro Cooling Container is a modular infrastructure unit designed for high-density computing environments. It in tegrates hydro-cooling technology with containerized deployment architecture to support scalable computing facilities.The system is engineered for efficient thermal management, reliable operation, and rapid deployment.

Up to 420 HPC Server can be housed inside a single 40ft container
Target Miner: Supercomputing Server, ModelS21 hydro series.
Total load: 2412 kw (including cooling power consumption)
PUE<1.05
Integrated dry cooler.
Type of container: 40HQ*2 stacking Design
Heat dissipation:2400 kW;equipped with 20 large-volume fans

Advantages

Lower
Transportation
Costs

It has lower transportation costs compared to the traditional 20-foot container solution.

Save 2/3 of
The Land

The same power capacity can save 2/3 of the land occupied compared to a 20-foot container solution.

Reduces The
Amount of Work and
Time

Highly prefabricated modular design greatly reduces the amount of work and time required for deployment.

Cooling Parameters

SPEC	SR40V3
Unit of Computer	420
Certification	CE/UL certification
System composition	Dry cooler container1 Device container1(PDC2+RACK2+CDU)
System energy consumption	120kw
Heat dissipation capacity	>2400KW
Environmental adaptability	-20°℃~45℃
Evaporation pad	Standard configuration
Container specifications	40HQ*2 China Classification Society Certification
Constant temperature mode	Variable frequency speed control of AC fan+AC fan stepwise regulation
Pump	11kW*1
Supercomputing Server container weight	10040kg
Dry cooler weight	10160kg
Control system	PLC control console
Input	3-phase 380-415V 50/60Hz

Key Features

Hydro-Cooling Architecture

The system utilizes liquid-based thermal management to efficiently dissipate heat generated by high-density computing hardware.

Modular Container Design

Containerized infrastructure allows rapid deployment, simplified transportation, and scalable expansion for large-scale computing facilities.

High-Density Computing Support

The SR40 V3 is designed to support high-density computing loads while maintaining stable operating temperatures.

Industrial-Grade Construction

Built for long-term operation in demanding environments, the container structure and cooling systems are engineered for durability and reliability.

Applications

Bitcoin Mining Facilities

High-Density Data Centers

Energy-Integrated Computing Sites

Remote Computing Infrastructure

Typical Use Cases

Rapid Site Deployment

Modular InfrastructureExpansion

Simplified Facility Planning

Reduced Cooling System Complexity

How Can We Help You?

We design and manufacture a new generation of containerized cooling systems, tailored for harsh environments and global deployments.

Support for winter heating or industrial heat reuse?
Yes — by integrating an external plate heat exchanger (PHE), the system can export high-quality return water heat at 45°C to 60°C for building heating, greenhouse agriculture or other industrial applications.
Days required from arrival to full commissioning?
Installation time depends on the model: a 12-miner micro skid can be grid-connected within half a day, while a 308-miner standard container reaches full-load commissioning in 2 to 3 days with a skilled team.
Ground and foundation requirements for installation?
A level, hardened concrete foundation or load-bearing steel frame is essential. The site must also satisfy flatness, load-bearing capacity, reliable power supply, proper drainage and space for equipment hoisting.
Custom branding and CSC shipping certification?
Custom logos and color schemes are supported, quoted separately based on complexity. For international logistics, all necessary certification documents are provided — including CSC certification — for compliant maritime shipping.
Anti-corrosion grades and insulation performance?
Standard containers feature C4 industrial-grade corrosion resistance, with C5 marine-grade options available. Inner walls are lined with high-density polyurethane foam for flame retardancy and thermal insulation.
