SR 20-M

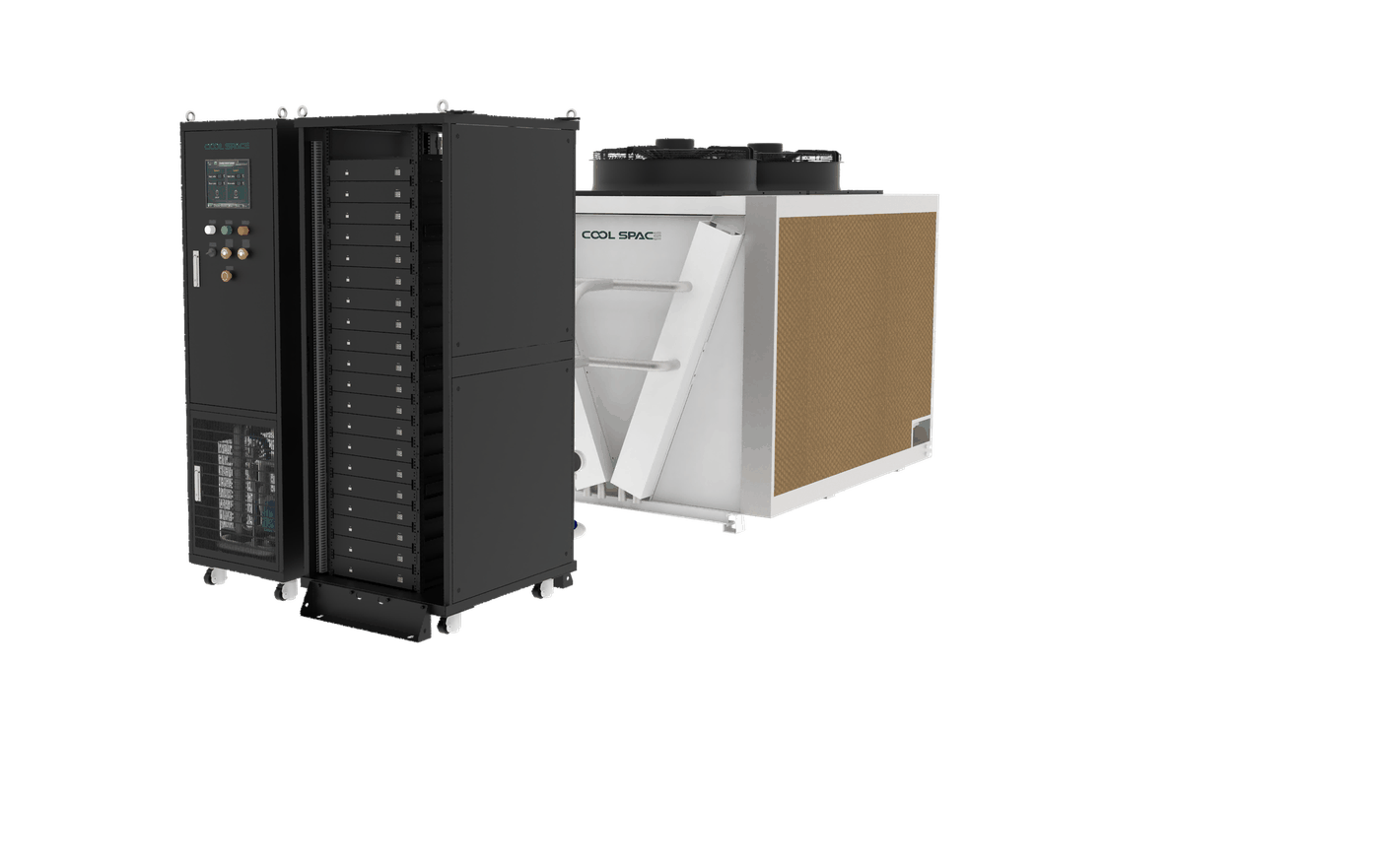

A fully integrated, factory-built system designed for high-density mining. Capable of housing up to 20 hydro miners and dissipating over 200 kW of heat, it achieves a design PUE below 1.05. The entire system is delivered as two plug-and-deploy modules for rapid setup.
Precision Engineered In-House. Zero Compromise.

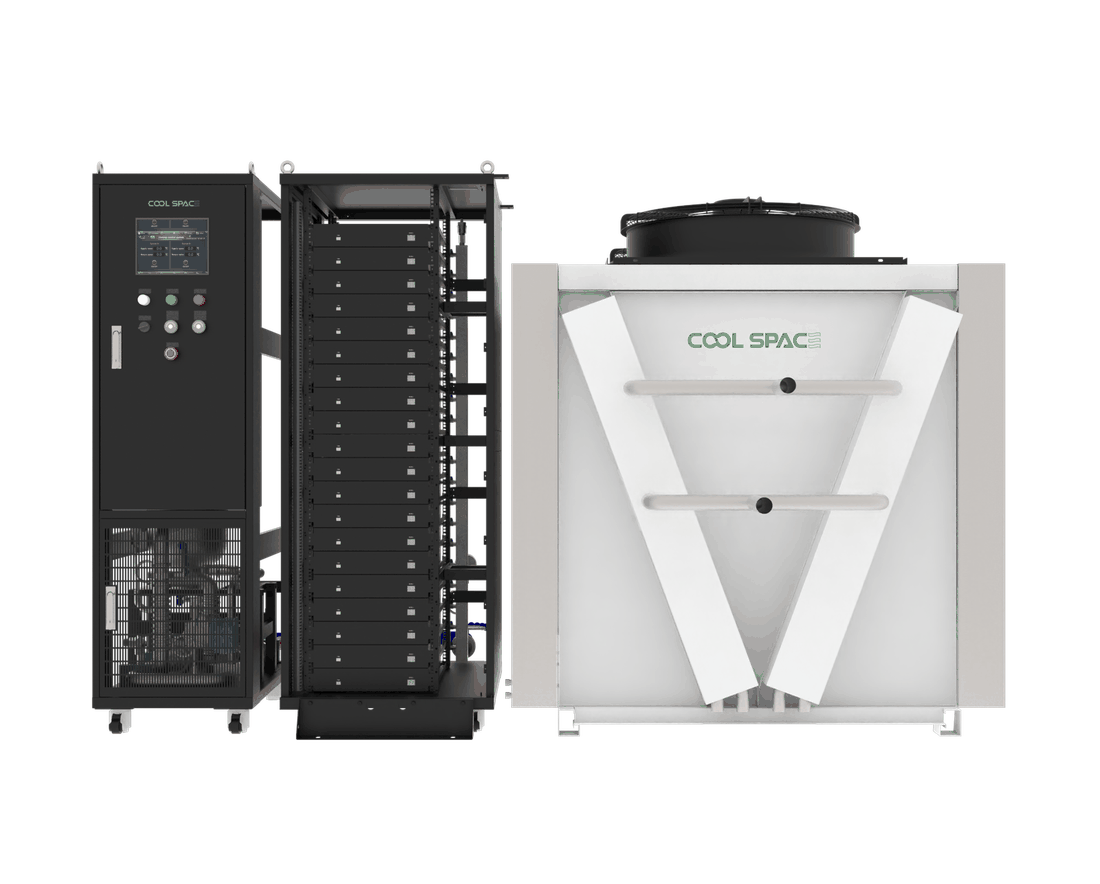

Discover the SR 20-M advantage. This system comprises two fully factory-integrated modules—the dry-cooler container and the combined power-distribution cabinet. From initial design and assembly to rigorous stress testing, every step is executed in-house to guarantee uncompromising quality.
One system. Two ways to deploy.
The SR 20-M features a split-type structural design that adapts to your site — not the other way around.
Indoor Split Configuration
Place the miner cabinet inside your facility with the dry-cooler container outdoors — the right fit where climate control, security, or existing buildings are part of the picture.
- Miner cabinet deploys inside the facility
- Dry cooler positioned outdoors
- Adapts to constrained or existing sites
Outdoor All-in-One Configuration
Deploy the complete system outdoors as a single integrated unit — the fastest path from delivery to full operation on open sites and greenfield locations.
- Complete system outdoors as one unit
- Fastest route to full commissioning
- Ideal for open sites and rapid scale-out
Engineered as one system, not assembled from parts
Power distribution, networking, the miner rack, and the coolant distribution unit arrive pre-integrated and pre-tested as a single cabinet.
Power Distribution
Main breaker 400 A with 20 × 20 A miner breakers. High-reliability design with high-grade copper bar connections throughout.
Network Switch
2 × 24-port Gigabit switches integrated in the cabinet — network-ready from day one.
Miner Rack
20 high-strength slots on a reinforced frame with all cabling built in — optimized for convenient maintenance.
Coolant Distribution
PLC cabinet with a 70 L all-in-one water tank and a 20 m³/h pump. Real-time monitoring and control of operating frequency.
A lower cost per deployed megawatt
The compact SR 20-M is built to cut the three biggest line items in small- and mid-scale deployments: shipping, land, and on-site labor.
Lower Transportation Costs
Up to 40% lower shipping cost than a traditional 20-foot container solution — same power capacity, smaller logistics footprint.
Less Land Occupied
At the same power capacity, the SR 20-M occupies up to 56% less land than a 20-foot container deployment — land that stays available for the next expansion phase.
Less Work, Less Time
Highly prefabricated modular design dramatically reduces the amount of work and time required on site — from delivery to commissioned operation.
Automated System Monitoring. Hands-Free Reliability.
The PLC-based Intelligent Control Console keeps the SR 20-M stable around the clock — and gives operators full visibility when it matters.
- Precise thermostatic control
- Adaptive flow control
- Automatic preheating control
- External cooling system linkage
- Historical alarms & operation records
- Historical performance data curves
- Multi-point fault alarm system
- Low water level & leak alarms
- Auto load reduction & recovery on high temp
- Unified component status overview
- O&M operation permission groups
- Indoor & outdoor environment monitoring
Illustrative interface. Values shown are representative operating data.
SR 20-M at a glance
Full system parameters for capacity, physical dimensions, electrical input, and control.
Specifications are subject to continuous improvement. Custom configurations available on request.
Where the SR 20-M performs
Hydro Mining Facilities
High-Density HPC & AI Compute
Energy-Integrated Computing Sites
Remote Sites with Limited Staff
Ready to deploy the SR 20-M?
Talk to an engineer about your site, power capacity, and target timeline. We'll help you size the right configuration — and get you a quote fast.
Contact CoolSpace →
