Home / SR2 A1 & V1 Hydro Cooling Container

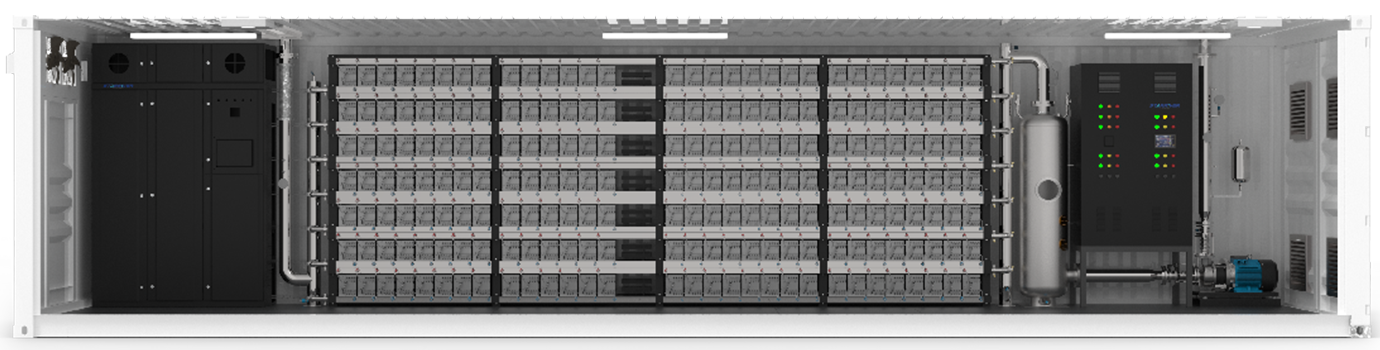

SR2 A1(UL) / V1(CE) Hydro Cooling Container
Purpose-built for large-scale hydro-cooling data center cluster with exceptional thermal and spatial efficiency
High-Density Computing Power Support
Rapid Deployment
Stable Heat Dissipation
Industrial-Grade Design
PDC
Main breaker: 2400A(1200A*2)
Miner breakers: 16A*182pcs
NET Switch
24port 1000Mps*15pcs
Computer Rack
182 slots high-strength frame built-in cable
CDU
PLC cabinet
All in One water tank
Pump:87m³/h
Product Overview
The SR40 V3 Hydro Cooling Container is a modular infrastructure unit designed for high-density computing environments. It in tegrates hydro-cooling technology with containerized deployment architecture to support scalable computing facilities.The system is engineered for efficient thermal management, reliable operation, and rapid deployment.
- Up to 364 HPC Servers can be housed inside a single 40ft container
- Target Computer: Supercomputing Server, Model S19/21 hydro series.
- Total load: 2100 kw (including cooling power consumption)
- PUE<1.05
- Integrated dry cooler.
- Type of container: 40HQ*2 Stacking Design
- Heat dissipation:2000 kW;equipped with 20 large-volume fans
Advantages
Lower
Transportation
Costs
It has lower transportation costs compared to the traditional 20-foot container solution.
Save 56% of
The Land
The same power capacity can save 56% of the land occupied compared to a 20-foot container solution.
Reduces The
Amount of Work and
Time
Highly prefabricated modular design greatly reduces the amount of work and time required for deployment.
UL
Certification
UL certification for the entiresystem and hardware.
Cooling Parameters
| SPEC | SR2 A1(UL) / V1(CE) |
| Unit of Computer | 364 |
| Certification | UL/CE certification |
| System composition | Dry cooler container*1 / Device container*1(PDC*2+RACK*2+CDU) |
| System energy consumption | 108kw |
| Heat dissipation capacity | >2400KW |
| Environmental adaptability | -20°℃~45℃ |
| Evaporation pad | Standard configuration |
| Container specifications | 40HQ*2 China Classification Society Certification |
| Constant temperature mode | Variable frequency speed control of AC fan + AC fan stepwise regulation |
| Pump | 11kW*1 |
| Supercomputing Server container weight | 9080kg |
| Dry cooler weight | 9230kg |
| Control system | PLC control console |
| Input | 3-phase 380-415V 50/60Hz |
Key Features
Hydro-Cooling Architecture
The system utilizes liquid-based thermal management to efficiently dissipate heat generated by high-density computing hardware.
Modular Container Design
Containerized infrastructure allows rapid deployment, simplified transportation, and scalable expansion for large-scale computing facilities.
High-Density Computing Support
The SR40 V3 is designed to support high-density computing loads while maintaining stable operating temperatures.
Industrial-Grade Construction
Built for long-term operation in demanding environments, the container structure and cooling systems are engineered for durability and reliability.
Applications
Bitcoin Mining Facilities
High-Density Data Centers
Energy-Integrated Computing Sites
Remote Computing Infrastructure
Typical Use Cases
Rapid Site Deployment
Modular InfrastructureExpansion
Simplified Facility Planning
Reduced Cooling System Complexity
