SR40U V1 Hydro Cooling Container
Purpose-built for large-scale hydro-cooling data center cluster with exceptional thermal and spatial efficiency
High-Density Computing Power Support
Rapid Deployment
Stable Heat Dissipation
Industrial-Grade Design

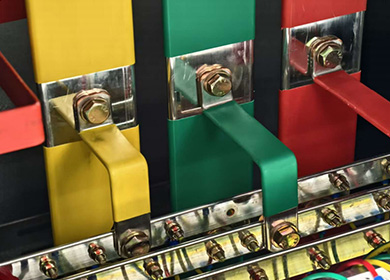

PDC
Main breaker: 3600A(1200A*3)
Miner breaker: 25A*135pcs
NET Switch
24port 1000Mps*18pcs

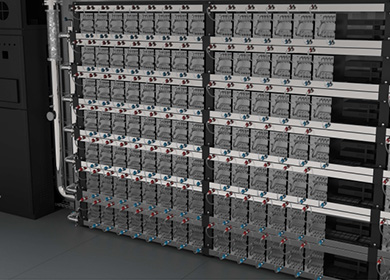

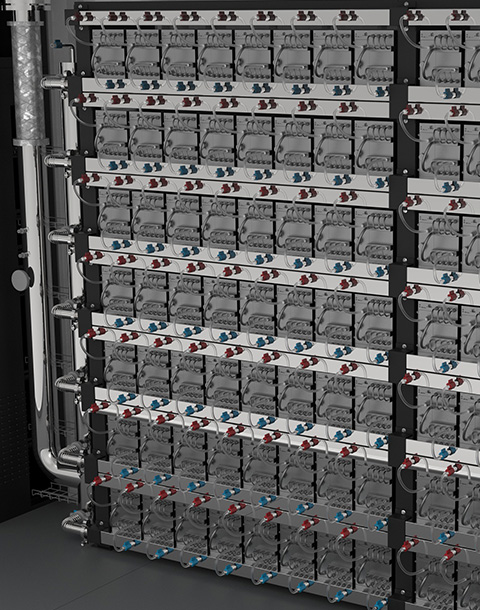

Computer Rack
15 high-strength cabinets with built-in cables (9 slots each)

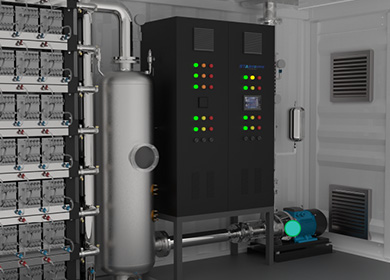

CDU
PLC cabinet All in One water tank Pump:150m%/h
Product Overview

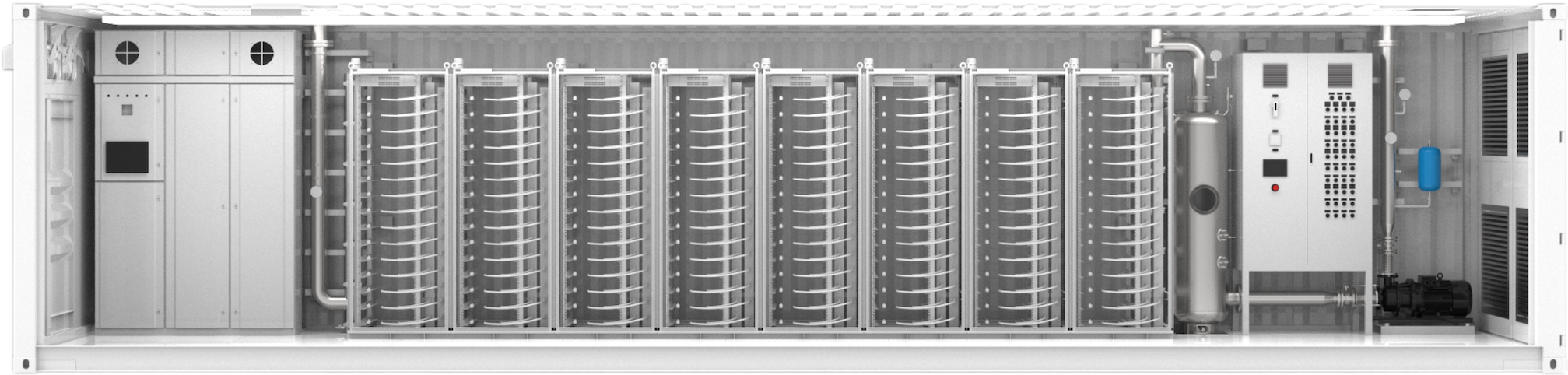

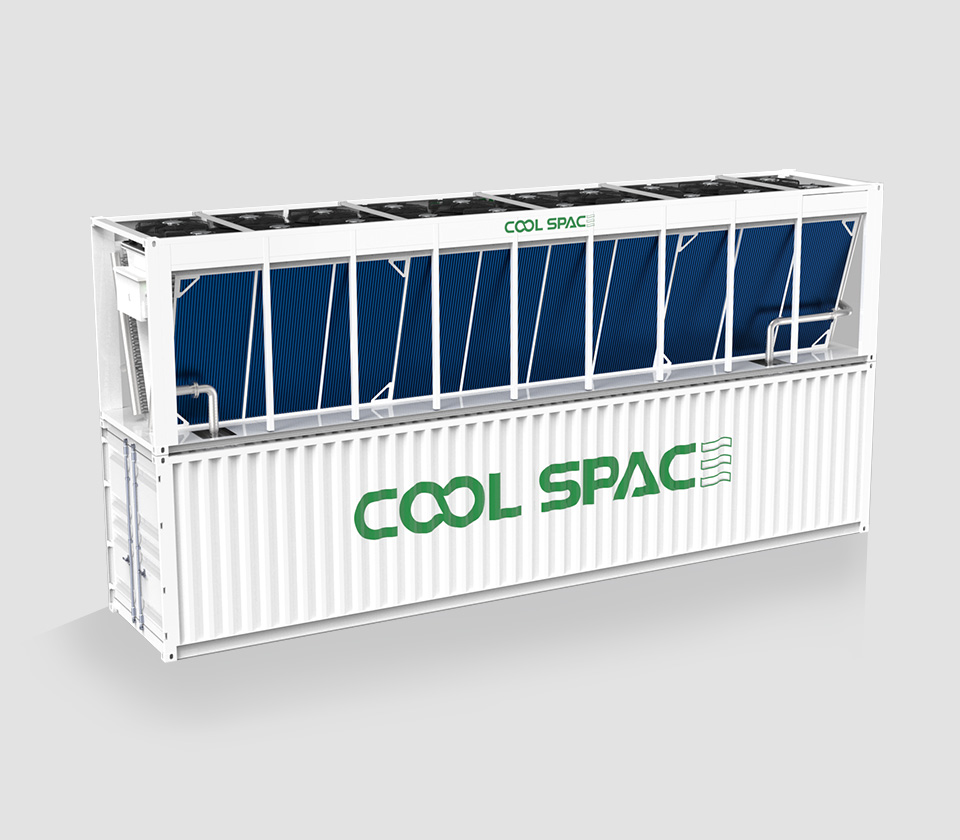

The SR40U V1 Hydro Cooling Container is a modular infrastructure unit designed for high-density computing environments. It in tegrates hydro-cooling technology with containerized deployment architecture to support scalable computing facilities.The system is engineered for efficient thermal management, reliable operation, and rapid deployment.
- Up to 135 HPC Servers can be housed inside a single 40ft container
- Target Computer: Supercomputing Server 3U hydro series.
- Total load: 1608 kw (including cooling power consumption)
- PUE<1.05

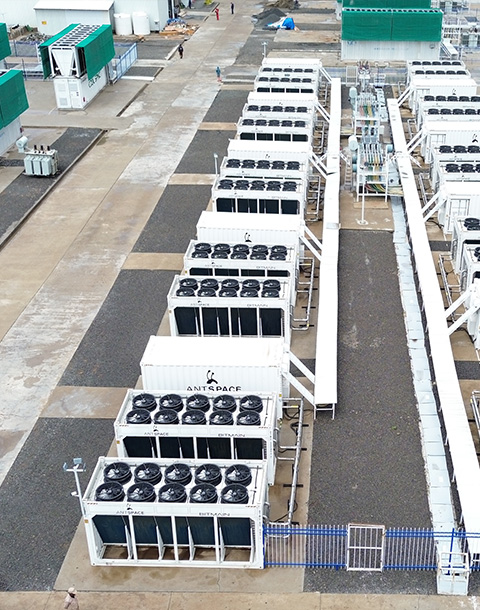

- Integrated dry cooler.
- Type of container: 40HQ*2 stacking Design
- Heat dissipation:>1500 kW; Equipped with 20 large-volume fans
Advantages
Lower
Transportation
Costs
It has lower transportation costs compared to the traditional 20-foot container solution.
Save 2/3 of
The Land
The same power capacity can save 2/3 of the land occupied compared to a 20-foot container solution.
Reduces The
Amount of Work and
Time
Highly prefabricated modular design greatly reduces the amount of work and time required for deployment.
Cooling Parameters
| SPEC | SR40U V1 |
| Unit of Computer | 135(3U) |
| Certification | CE/UL certification |
| System composition | Dry cooler container*1 Device container*1(PDC*1+CABINET*9+CDU & PLC*1) |
| System energy consumption | 98kw |
| Heat dissipation capacity | >1500KW |
| Environmental adaptability | -20°℃~45℃ |
| Evaporation pad | Standard configuration |
| Container specifications | 40HQ*2 China Classification Society Certification |
| Constant temperature mode | Variable frequency speed control of AC fan+AC fan stepwise regulation |
| Pump | 18.5kW*1 |
| Supercomputing Server container weight | 8210kg |
| Dry cooler weight | 9130kg |
| Control system | PLC control console |
| Input | 3-phase 380-415V 50/60Hz |
Key Features

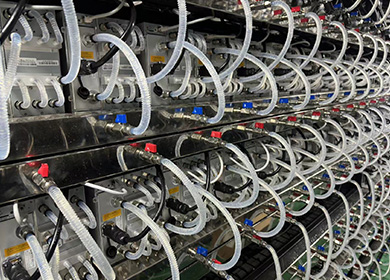

Hydro-Cooling Architecture
The system utilizes liquid-based thermal management to efficiently dissipate heat generated by high-density computing hardware.
Modular Container Design
Containerized infrastructure allows rapid deployment, simplified transportation, and scalable expansion for large-scale computing facilities.
High-Density Computing Support
The SR40U V1 is designed to support high-density computing loads while maintaining stable operating temperatures.
Industrial-Grade Construction
Built for long-term operation in demanding environments, the container structure and cooling systems are engineered for durability and reliability.
Applications
Bitcoin Mining Facilities
High-Density Data Centers
Energy-Integrated Computing Sites
Remote Computing Infrastructure
Typical Use Cases
Rapid Site Deployment
Modular InfrastructureExpansion
Simplified Facility Planning
Reduced Cooling System Complexity
How Can We Help You?
We design and manufacture a new generation of containerized cooling systems, tailored for harsh environments and global deployments.
- Support for winter heating or industrial heat reuse?Utilizing heat exchangers to recycle mining waste heat (45°C–60°C) for secondary industrial or residential use.
- Days required from arrival to full commissioning?Estimated installation and commissioning periods for various container sizes, from 12-miner to 308-miner units.
- Ground and foundation requirements for installation?On-site requirements including ground flatness, load-bearing capacity, and power supply for container stability.
- Custom branding and CSC shipping certification?Information on customized branding options and mandatory international shipping certifications like CSC.
- Anti-corrosion grades and insulation performance?Technical specifications for container corrosion resistance (C4/C5) and high-density foam insulation performance.
